IXGH45N120 IXYS IGBT 1200V 75A 300W TO247

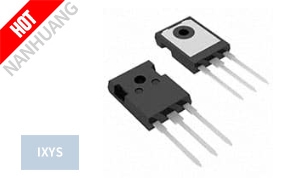

IXGH45N120 Images
IXGH45N120 Images
  • Manufacturer: IXYS (Littelfuse)
  • Category: Discrete Semiconductor Products~Transistors - IGBTs - Single Package/Case: TO-247-3
  • Description: IGBT 1200V 75A 300W TO247
  • COMPETITIVE PRICE and DELIVERY TIME
  • Order with confidence, there are no lead times for in-stock products.
Quickly Quote for You to Meet Your Target Price, Support Small Order Quantity with Fast Quick Delivery.
Download Datasheet (PDF)
IXGH45N120 Datasheet
ELECTRONIC COMPONENTS, CHOOSE NHE ELECTRONICS
IXGH45N120 Specifications:
  • MfrPart.: IXGH45N120
  • Mfr: IXYS
  • Description: IGBT 1200V 75A 300W TO247
  • Product Category: Discrete Semiconductor Products~Transistors - IGBTs - Single
  • Package: Bulk
  • Series: -
  • PartStatus: Active
  • IGBTType: -
  • Voltage-CollectorEmitterBreakdown(Max): 1200 V
  • Current-Collector(Ic)(Max): 75 A
  • Current-CollectorPulsed(Icm): 180 A
  • Vce(on)(Max)@VgeIc: 2.5V @ 15V, 45A
  • Power-Max: 300 W
  • SwitchingEnergy: 14mJ (off)
  • InputType: Standard
  • GateCharge: 170 nC
  • Td(on/off)@25°C: 55ns/370ns
  • TestCondition: 960V, 45A, 5Ohm, 15V
  • ReverseRecoveryTime(trr): -
  • OperatingTemperature: -55°C ~ 150°C (TJ)
  • MountingType: Through Hole
  • Package/Case: TO-247-3
  • IXGH45N120 IXYS (Littelfuse), IGBT 1200V 75A 300W TO247, Discrete Semiconductor Products~Transistors - IGBTs - Single
IXGH45N120, IXYS authentic parts in stock from IXYS (Littelfuse) authorized distributors, order today, can ship immediately.
